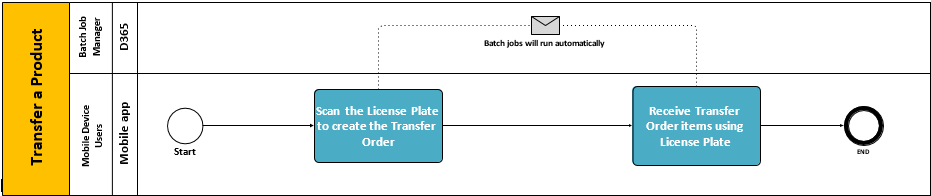

Process Flow Mapping:

Steps for Creating a Transfer Order through the Mobile Warehouse App:

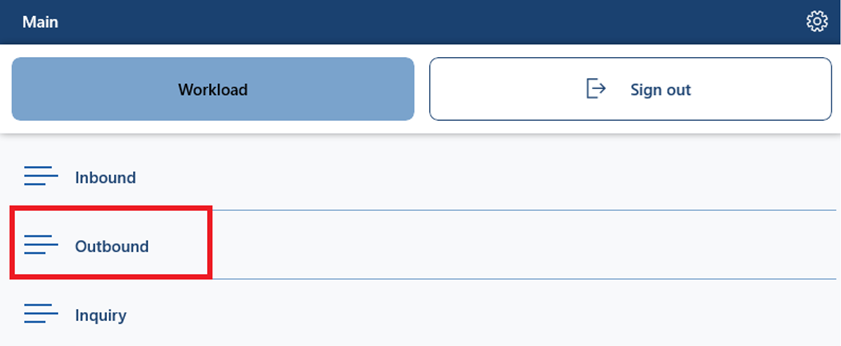

Step-1. Log in to the Warehouse management mobile app using user-id “110” and password “1“. Step-2. Open the “Outbound” menu.

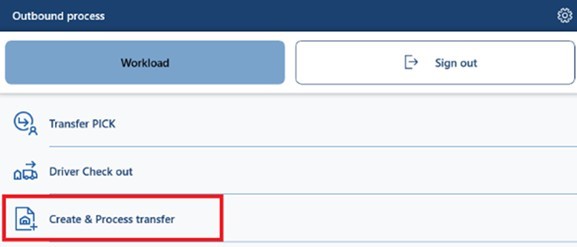

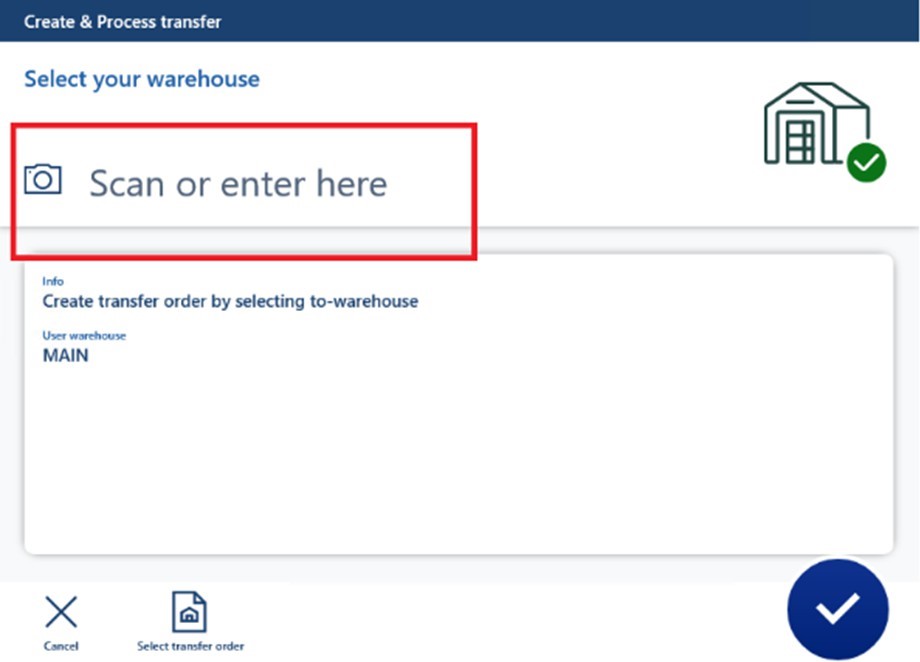

Step-3. Open the “Create & Process transfer” menu item.

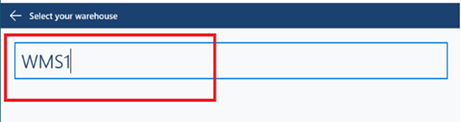

Step-4. Scan the warehouse “WMS1” where the item will be transferred.

Step-5. A transfer order number will be created “ITfr00000074” after entering the warehouse “WMS1”.



Figure 4 Scan Warehouse

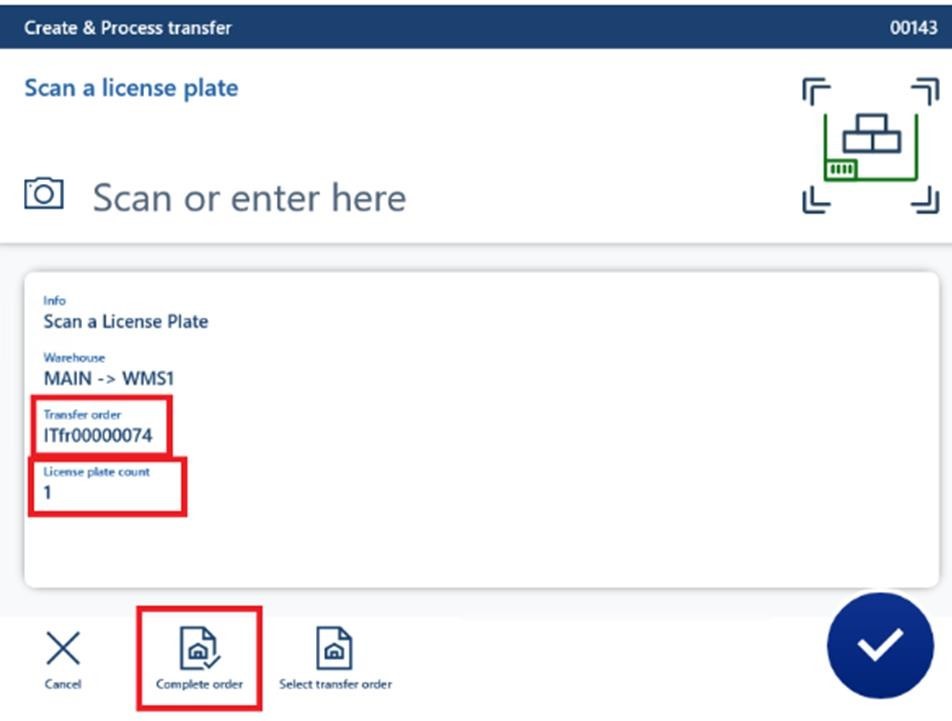

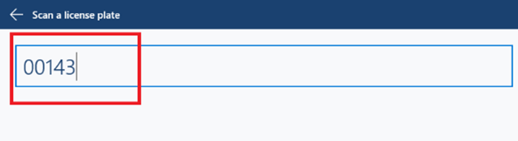

Step-6. Scan or enter the License plate “00143“.

Step-7. The License plate count will be “1”.

Step-8. Scan other license plates to add items otherwise, click on “Complete order” to complete the transfer order.

Step-9. Then Close the menu.

Steps for Reviewing Transfer Order created through the Mobile Warehouse App in D365:

Step-1. Batch Jobs will run automatically to process the information added through the Mobile Warehouse App.



Step-2. To create and ship the transfer order for the transfer order added through Mobile Warehouse App, 3 batch jobs will

run “Process warehouse app events”, “Automatic release of transfer orders”, and “Process outbound shipments”.

Step-3. Once the first batch job is completed the transfer order will be created in the D365 Dev Environment.

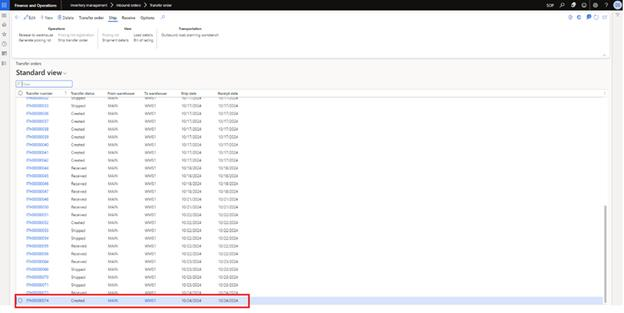

Step-4. To see the Transfer order, navigate to “Modules> Inventory Management>Inbound Orders> Transfer Order”

and select the transfer order “ITfr00000074” which was created in the Mobile Warehouse App.

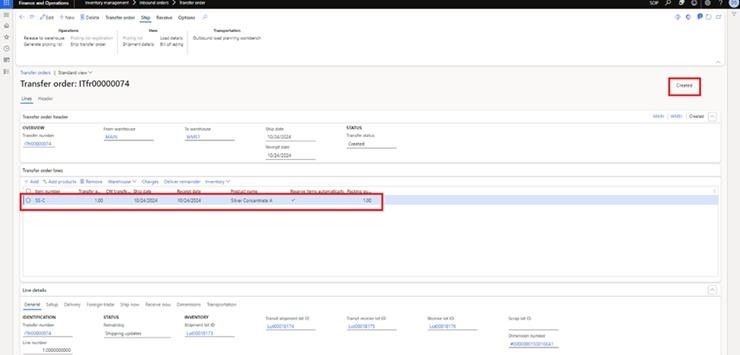

Step-5. Transfer order line has been added and the Item ID “SS-C”, quantity “1” and unit “t” has been added to it

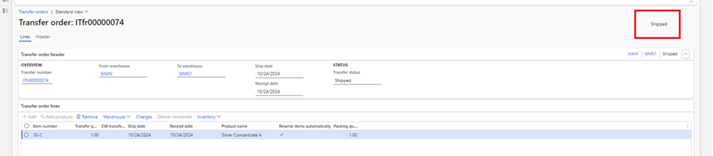

Step-6. After all the 3 batch jobs are completed, the transfer order status will change to “Shipped”.

Steps for Receiving a Product through Mobile Warehouse App:

Step-1.          Log in to the Warehouse management mobile app using user-id “111” and password “1“.

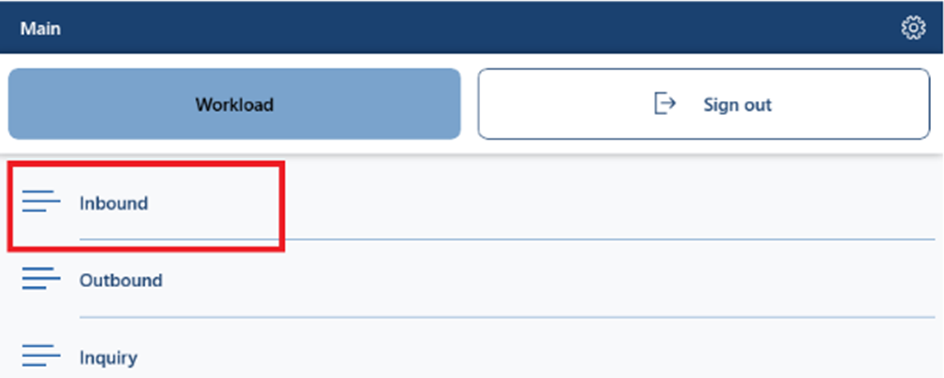

Step-2.        Open the “Inbound menu”.

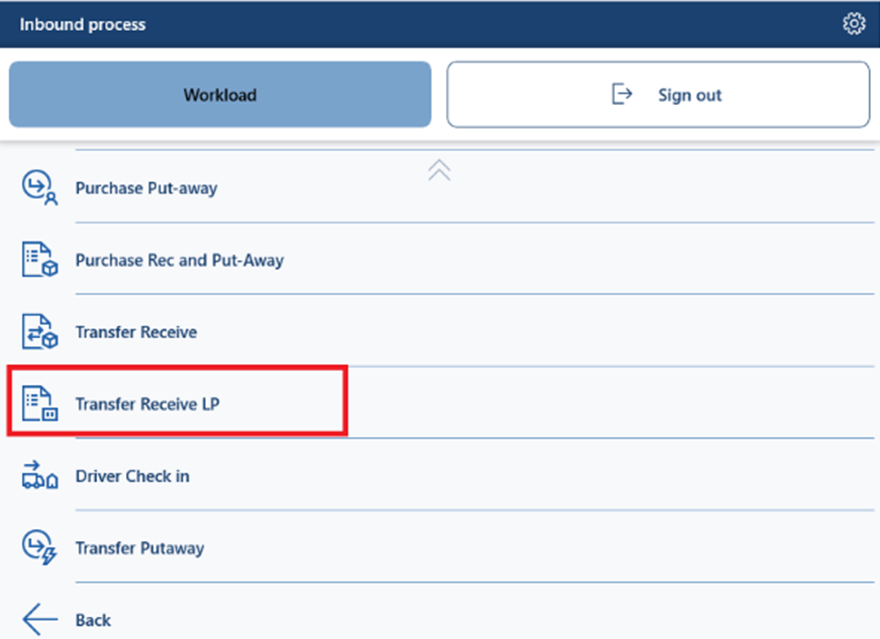

Step-3.          Open the “Transfer receive LP” menu item.

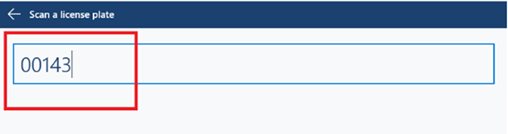

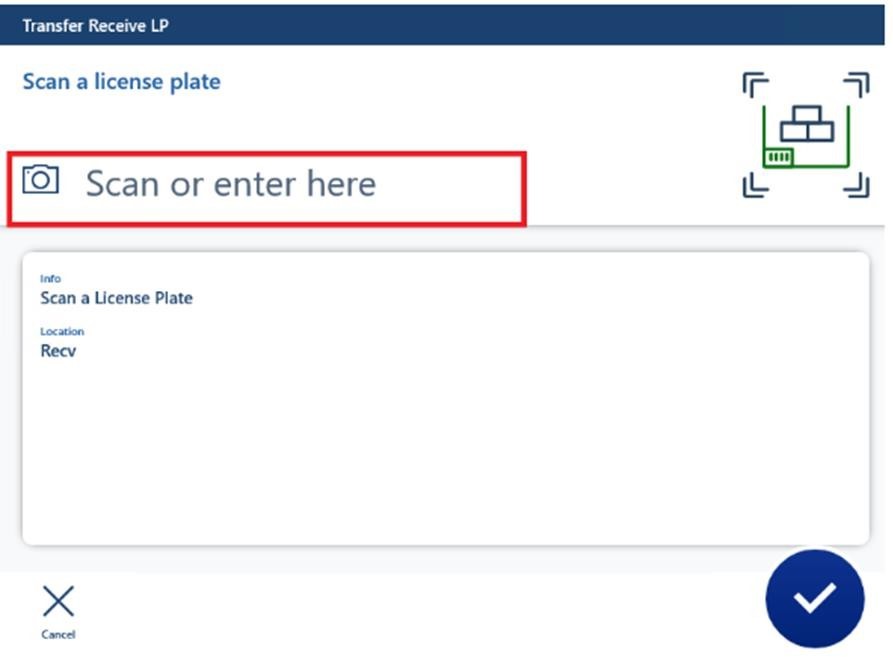

Step-4.          Scan License plate “00143”

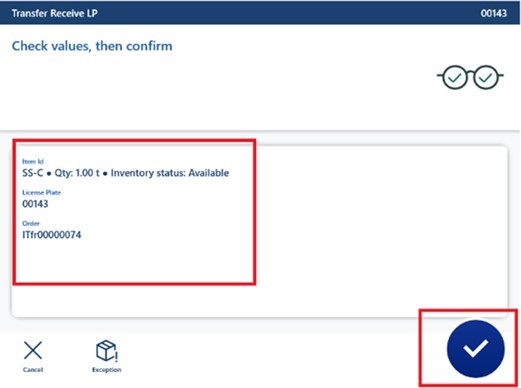

Step-5. Check the values displayed on the page and click on the checkmark bottom to confirm.

Steps for Reviewing Transfer Order received through Mobile Warehouse App in D365:

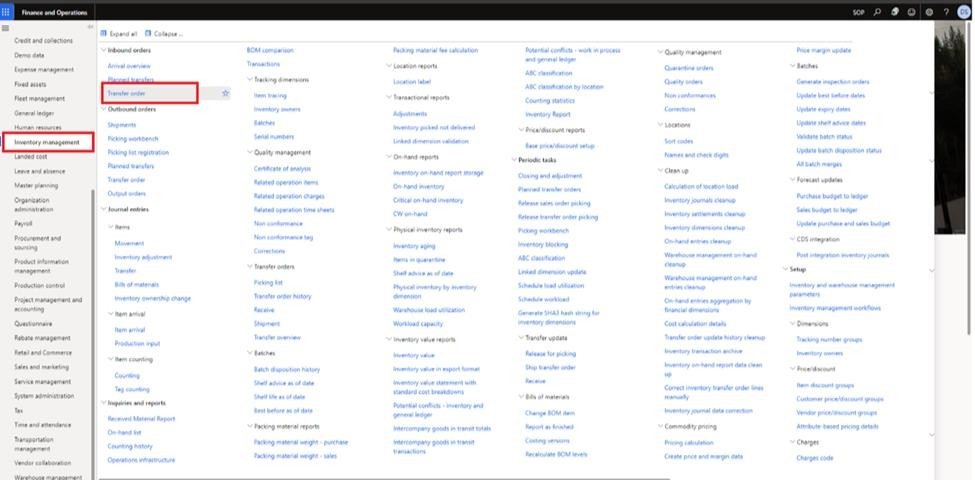

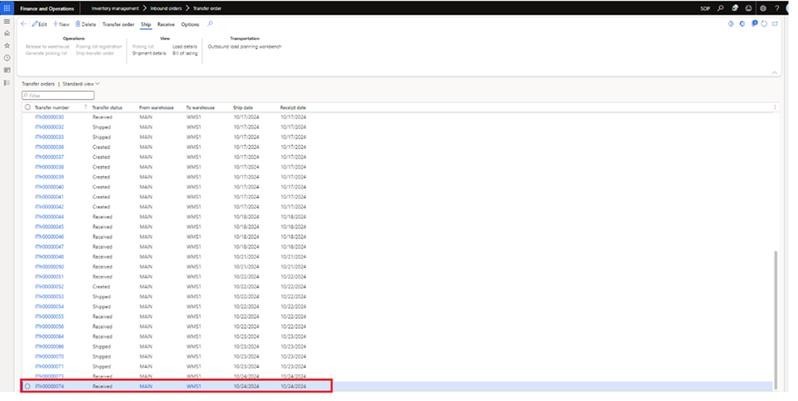

Step-1. Navigate to Modules> Inventory Management> Inbound Orders>Transfer Order and select the transfer order “ITfr00000074”.

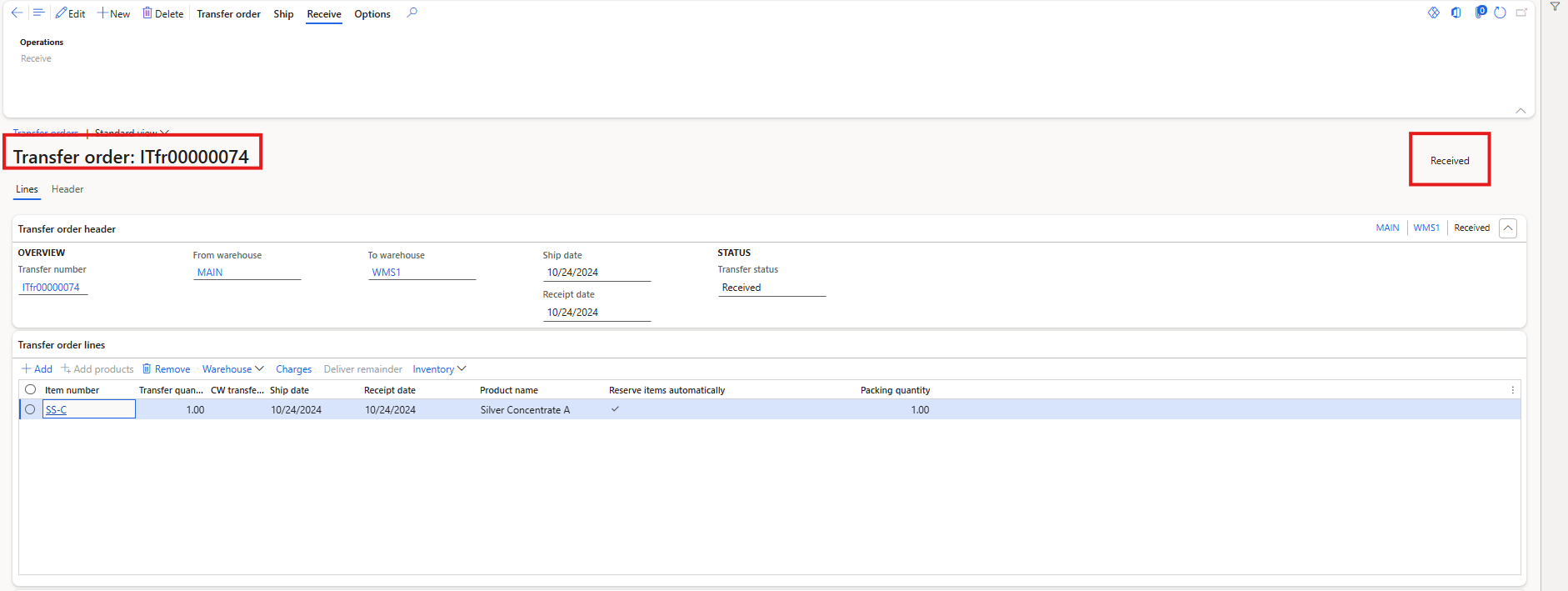

Step-2. The transfer order status will be changed to “Received”, From Warehouse “Main” to Warehouse “WMS1”.
